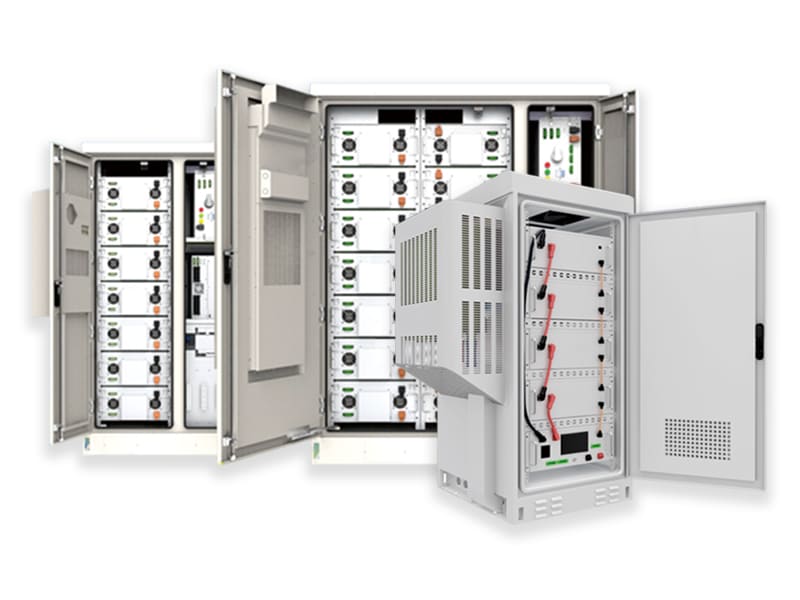

Industrial And Commercial Energy Storage System
Manufacturer in China
Industrial And Commercial Energy Storage System
SIEHOPE is a leading all in one energy storage system factory in China, capable of producing integrated solar battery systems for any industry to meet your needs.
Multi-machine parallel
Thermostatic control
Safe and reliable
BMS intelligent protection, safe and reliable. Built-in fire extinguishing device, automatic handling of ultra-early warning thermal runaway state.
Technical features
Has the function of lithium battery activated by solar energy and AC mains. It adopts modular module design and can realizesingle-sided maintenance.
System services
Intelligent constant temperature control, high protection structure design. It supports multi-machine limited parallel connection and a variety of configuration scheme options.
Full functioning
Multifunctional design, ON/OFF switch. The LCD display monitors the operating status in real time

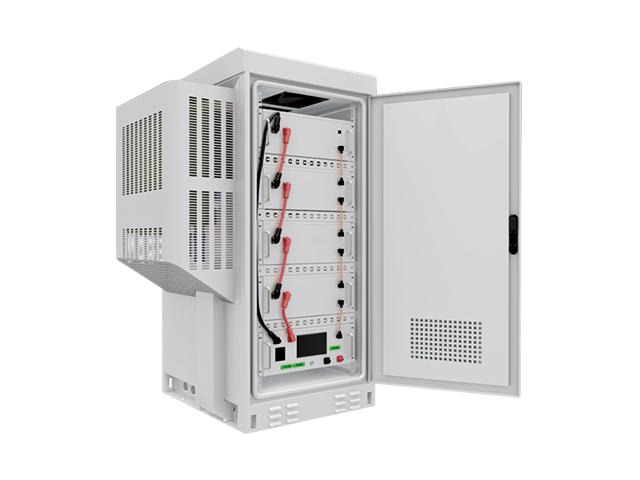

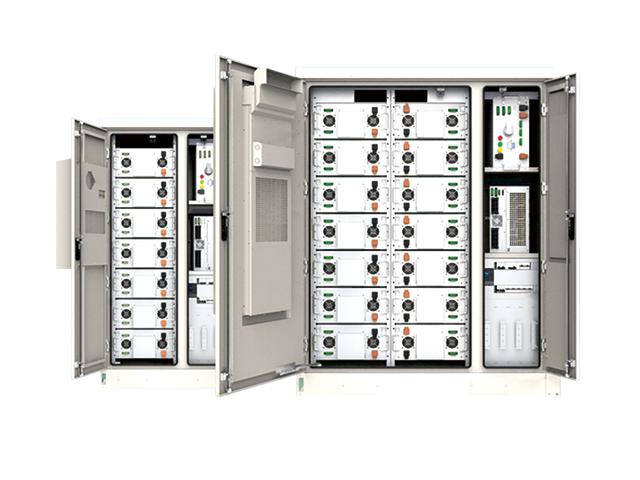

Distributed energy storage system
We Offer Customized Solutions for All Sizes Distributed energy storage system.
PRODUCT PARAMETERS
| Product model | 20KW/20KWH | 50KW/100KWH | 100KW/215KWH |
| AC parameters | |||
| Grid voltage | 230/400Vac | 400Vac | 400Vac |
| Rated AC power | 20KW | 50KW | 100KW |
| Rated AC current | 72A | 145A | |
| Rated grid frequency | 50/60HZ | 50/60HZ | 50/60Hz |
| Factor | -1.6 | -1~+1 | -1~+1 |
| THDi (Power Rating) | <3% | ||
| DC side parameters | |||
| Battery type | LFP | LFP | LFP |
| Battery level | 20Kwh | 100KWh | 215KWh |
| DC voltage rating | 409.6V | 358.4V | 716.8V |
| DC voltage range | 345.6-467.2V | 302.4~403.2V | 604.8-806.4V |
| Rated charge-discharge rate | 0.5C | 0.5C | 0.5C |
| DC maximum current | 25A | 90A | 150A |
| System parameters | |||
| lsolation method | Non-isolated | Non-isolated | Non-isolated |
| Dimensions (WxHxD) | 900x1480x800mm | 1000x2100x1000mm | 1600x2100x1000mm |
| weight | ~360Kg | 2000Kg | 2500Kg |
| System life | 6000 times @ 25*C,0.5CP,95%D0D, remaining SOcz70% | ||
| Communication interface | RS485、CAN、 LAN | ||
| Operating temperature | -20°C~509C | ||
| Altitude | S2000m | ||
| Temperature-controlled method | Industrial air conditioning | ||
| Fire protection system | Non-storage pressure perluorohexanone fire extinguishing system, reservedwater cooling and spraying interface | ||
| IP rating | IP55 | ||
Powering the evolution of energy storage
Get in touch with us about your next project, partnership opportunities, and more energy storage solutions.
